Complete Solution for Efficient and Safe Deboning

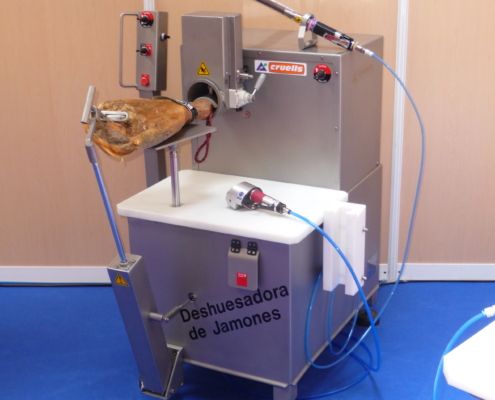

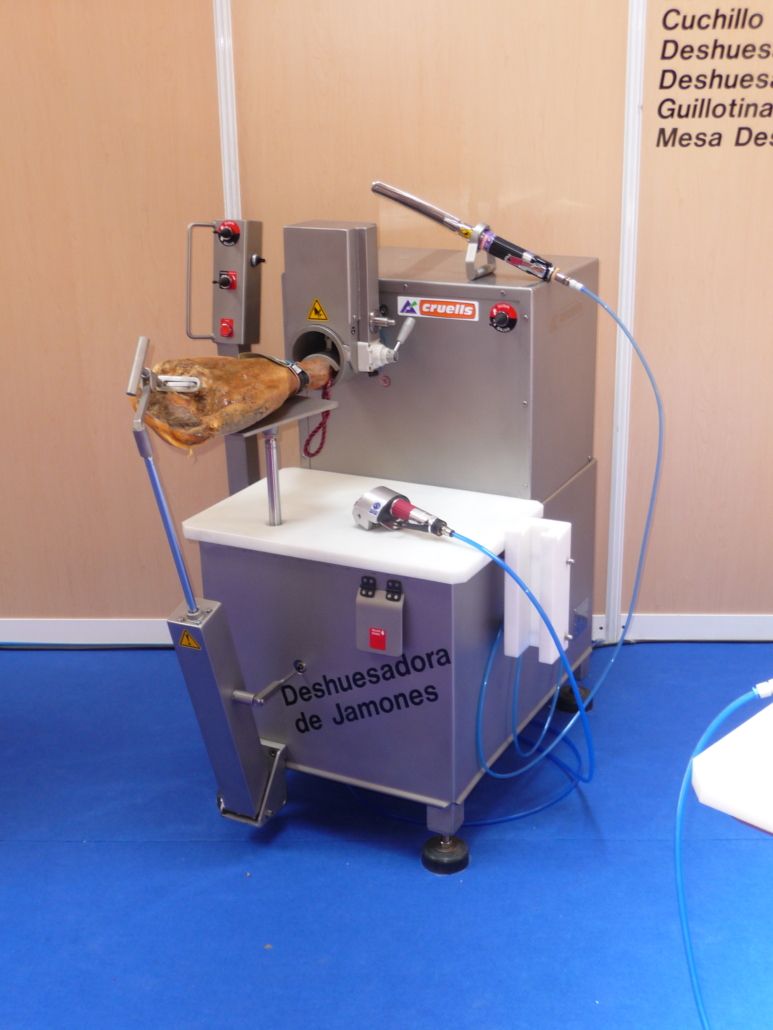

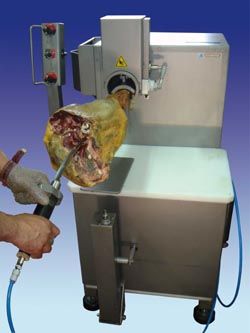

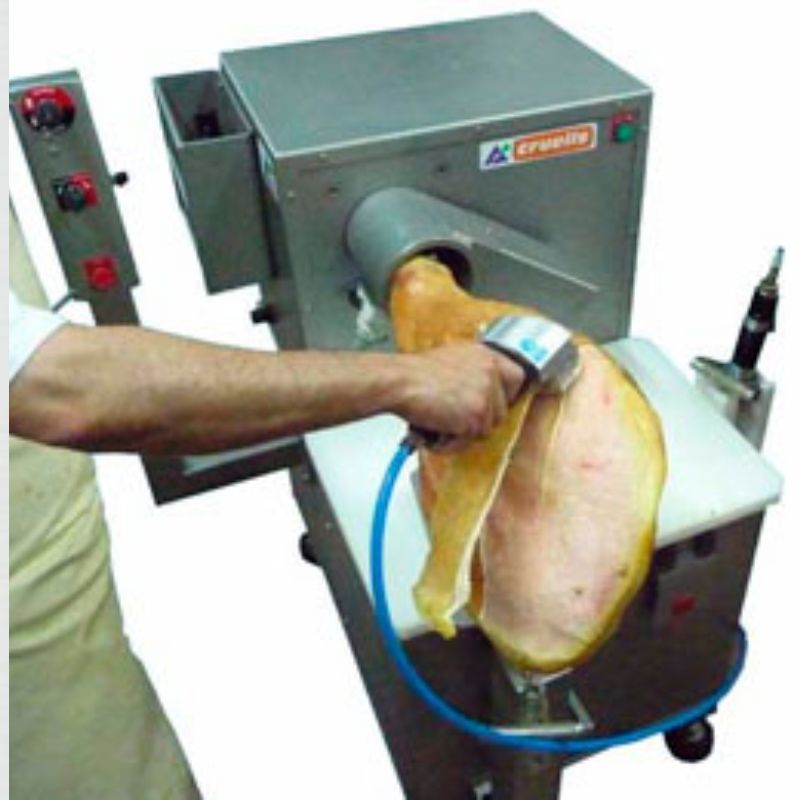

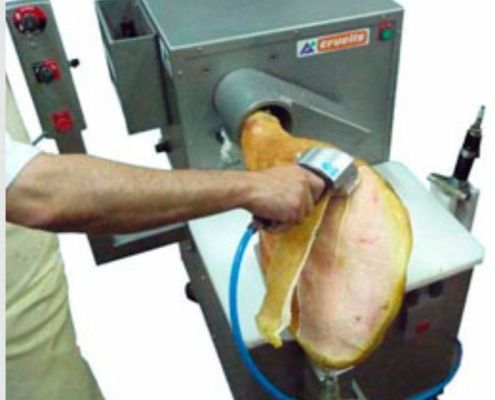

The F-1 is a pneumatic and electromechanical machine designed to facilitate all stages of ham processing: skinning, gouging, aitchbone (coxis) extraction, and full deboning. It incorporates rotating clamping systems and adjustable height to adapt to every operation and operator, improving working posture and reducing fatigue.

Technical Specifications / Características técnicas

• Operation: Compressed air (6 bar) and electricity (220V).

• Air Consumption: 20 l/min.

• Dimensions: 90 x 100 x 120 cm | Weight: 260 kg.

• Adjustable Auxiliary Table: Height-adjustable with an integrated gouger support.

• Controlled Rotation: Adjustable rotation speed for the ham, allowing for precise positioning.

• Aitchbone Extraction Hook: Foot-pedal activated system for safe and powerful bone extraction.

• Customizable Pressure: Multiple pressure and speed regulators adaptable to each specific piece.

---

Key Advantages / Ventajas

• Ergonomic Improvement: Drastically reduces physical strain on the operator.

• Accelerated Learning Curve: Simplifies the deboning process for new staff.

• Total Compatibility: Fully compatible with other pneumatic tools (skinners, gougers, etc.).

• Safety First: Features an active safety system and soft-start technology for smooth operation.
