Double-Sided Skinning and Polishing Line for Hams and Shoulders

Double-Sided Polishing Line | Integrated Nock System

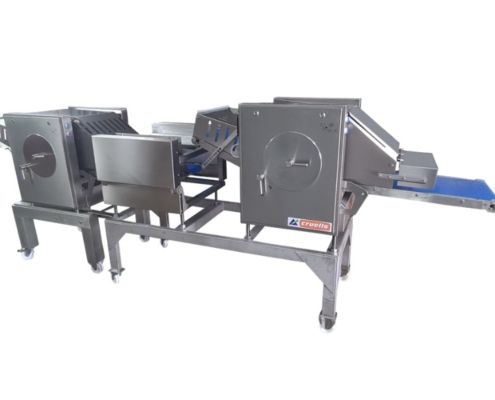

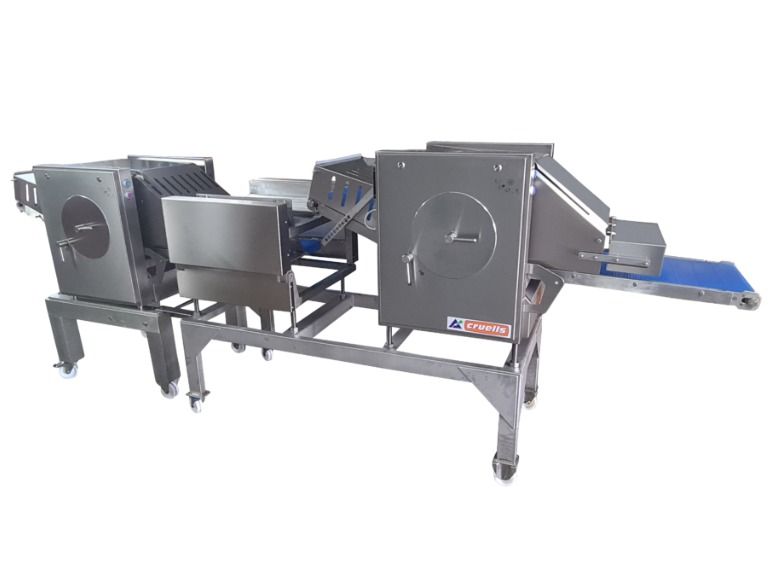

This double-sided polishing line is designed to achieve a uniform, high-quality skinning on hams, optimizing yield and significantly reducing manual handling. The system features two Nock CB-501/1000 skinning machines installed in-line, with a central gravity turner that automatically flips the ham to allow for complete double-sided polishing.

System Operation / Funcionamiento del sistema

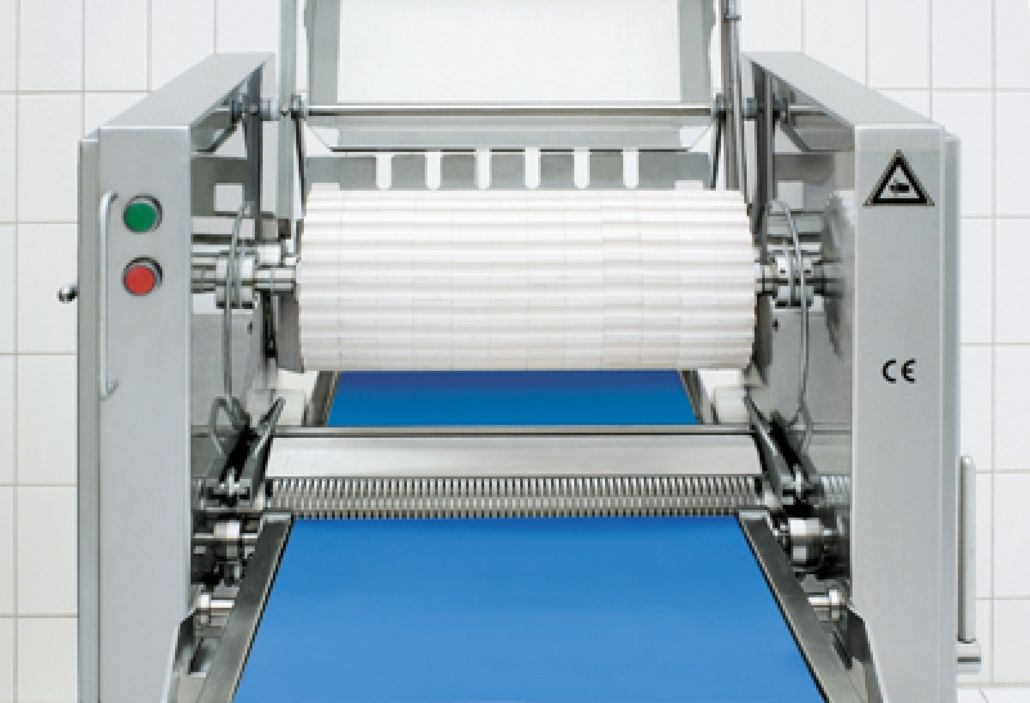

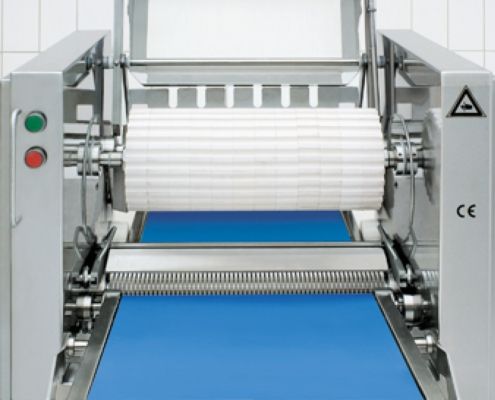

  1. Automated Infeed: The ham enters the first skinner via a conveyor belt equipped with a special infeed roller, ensuring constant and safe feeding.

  2. First-Side Skinning: The first surface is precision-skinned.

  3. Gravity Turner: The product moves to a central flipping station where gravity turns the ham automatically, eliminating the need for manual intervention.

  4. Second-Side Skinning: The ham enters the second skinner to process the opposite side.

  5. Continuous Workflow: The entire assembly is connected by conveyor belts, ensuring a continuous production flow and a homogeneous finish on all pieces.

Technical Specifications (Per Machine)

  • Model: CB-501/1000

  • Blade Length: 520 mm

  • Cutting Speed: 29 m/min

  • Motor: 2.94 kW – 3 Phase

  • Power Supply: 230/400V – 50/60 Hz

  • Approx. Weight: 670 kg

  • Footprint (LxWxH): 3,710 x 860 x 1,590 mm

Adaptable & Modular System

The line configuration is fully adjustable and customizable according to the client’s production needs and available floor space. Both conveyor length and layout can be tailored to ensure optimal integration into the production plant.

Download Catalogue: Double-Sided Polishing Lines
